Weha A Frame Storage Rack Safety Yellow 60″Lx59 1/2″H with Crossbar 24,000 lb (12,000 lb per side)
$324.00
24,000 lb (12,000 lb per side)
Weha Safety Yellow Granite and Stone A Frame Storage Rack Set with Crossbar are made to support granite, marble, engineered stone, quartz, quartzite, and all other sheet materials.
The Weha Granite and Quartz A Frame Storage Slab Rack will hold up to 12,000 lbs per side.
The Weha A Frame Storage Slab Rack is painted safety yellow for high visibility for easy loading and unloading, as well as customer walk through.
The Weha A Frame Storage Slab Rack has a wide 4 1/4″ inside diameter C channel on the bottom so that a piece of 2 x 4 can be put into the channel if preferred.
The Weha safety yellow A frame storage rack is made to hold full bundles of both 2cm and 3cm materials on both sides of the A frame.
The top spread of the A frame storage rack is 6 5/8″ wide. This allows storage of full height slabs up to at least 85″ on both sides at the same time without the slabs touching.
The Weha A Frame Storage Slab Rack comes as a set of 2 plus cross bar and all hardware.

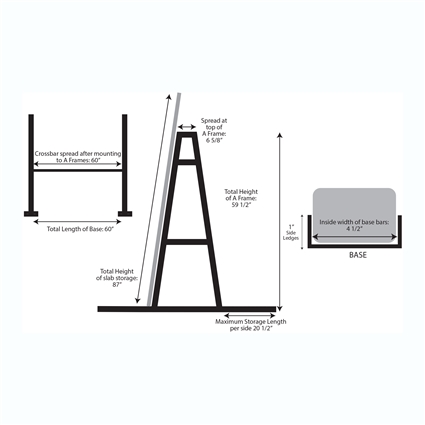

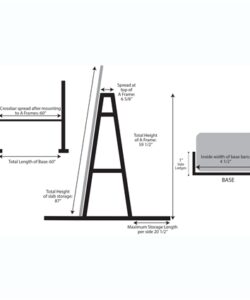

Weha Safety Yellow A Frame Storage Rack Specifications:
Crossbar spread after mounted to A Frames: 60″
Total length of base: 60″
Total height: 59 1/2″
Spread at top of A frame: 6 5/8″
Total height of slab storage: 87″
Maximum storage length per side: 20 1/2″
Inside width of storage A Frame base: 4 1/4″ with 1″ side ledges
