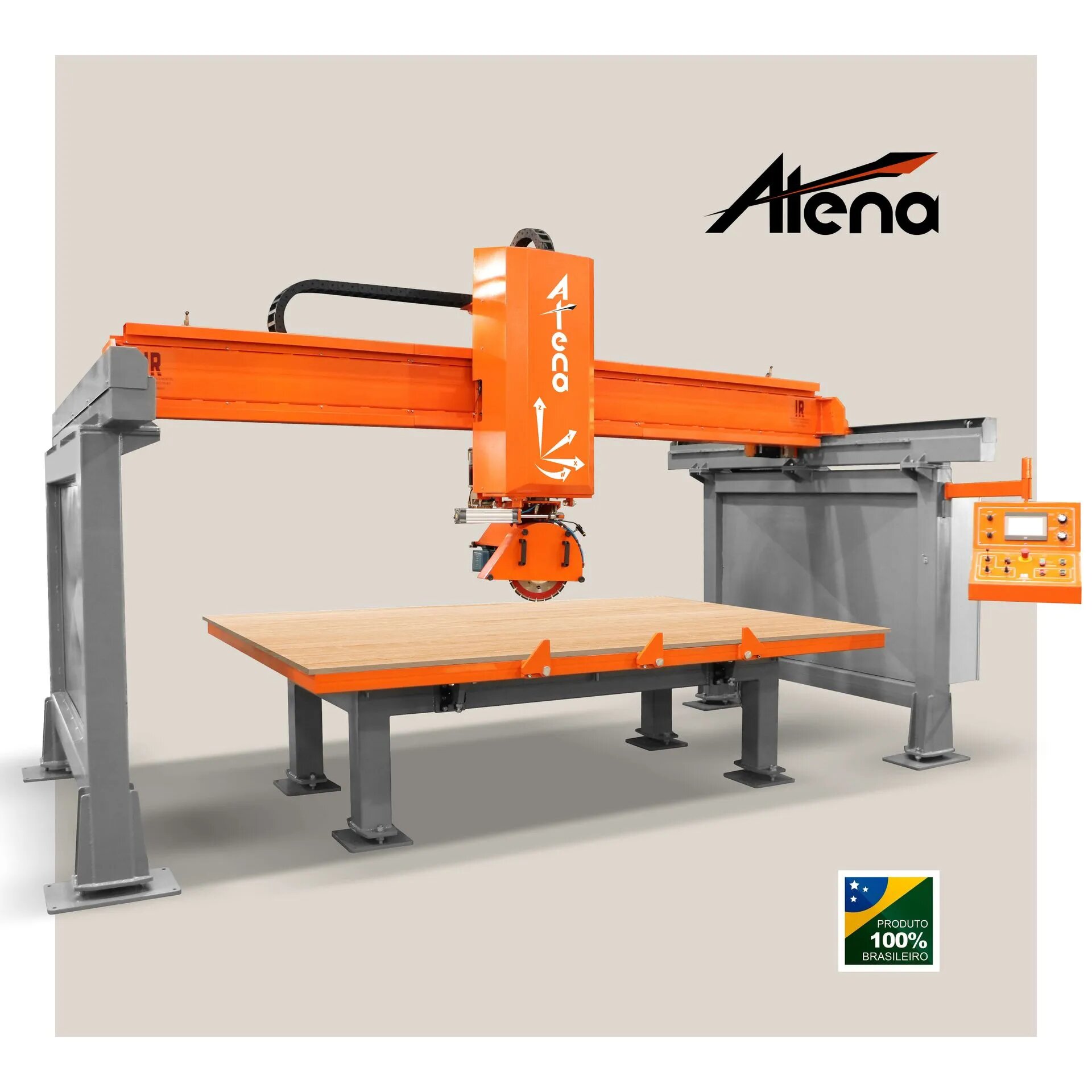

I R MACHINES ATENA BRIDGE SAW

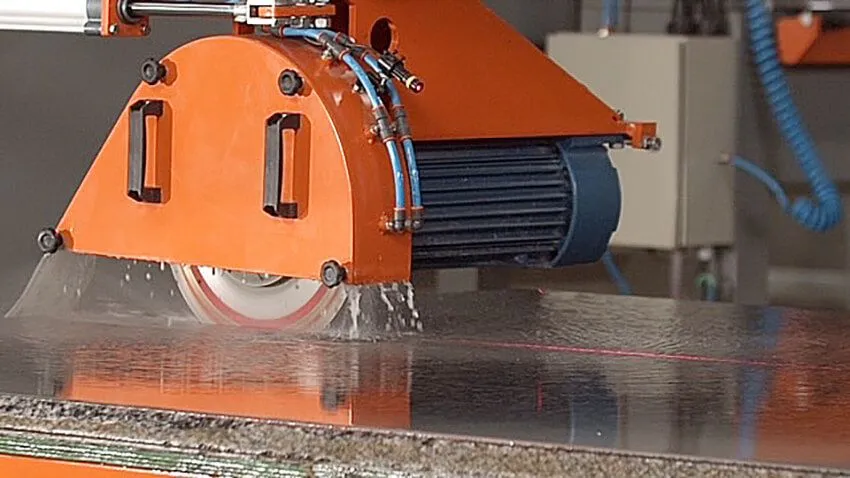

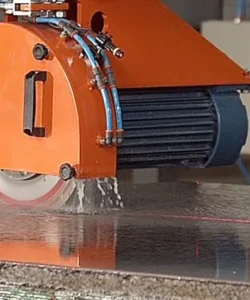

The Atena was designed to make straight cuts in marble, granite and other types of stone. With a PLC-controlled system, it is possible to program multiple cuts with the saw at 0° or 90°. In addition, it is possible to perform bowl cutting and L-cutting.

The machine has a remote control that makes it easier to reset the disc on top of the stone. The X, Y and W axes move at the same time, reducing the time it takes to start cutting materials.

VIDEO

Compare

SKU: ATENA BRIDGE SAW Categories: Bridge Saws, Stone Fabrication Machinery

Description

TECHNICAL DATA:

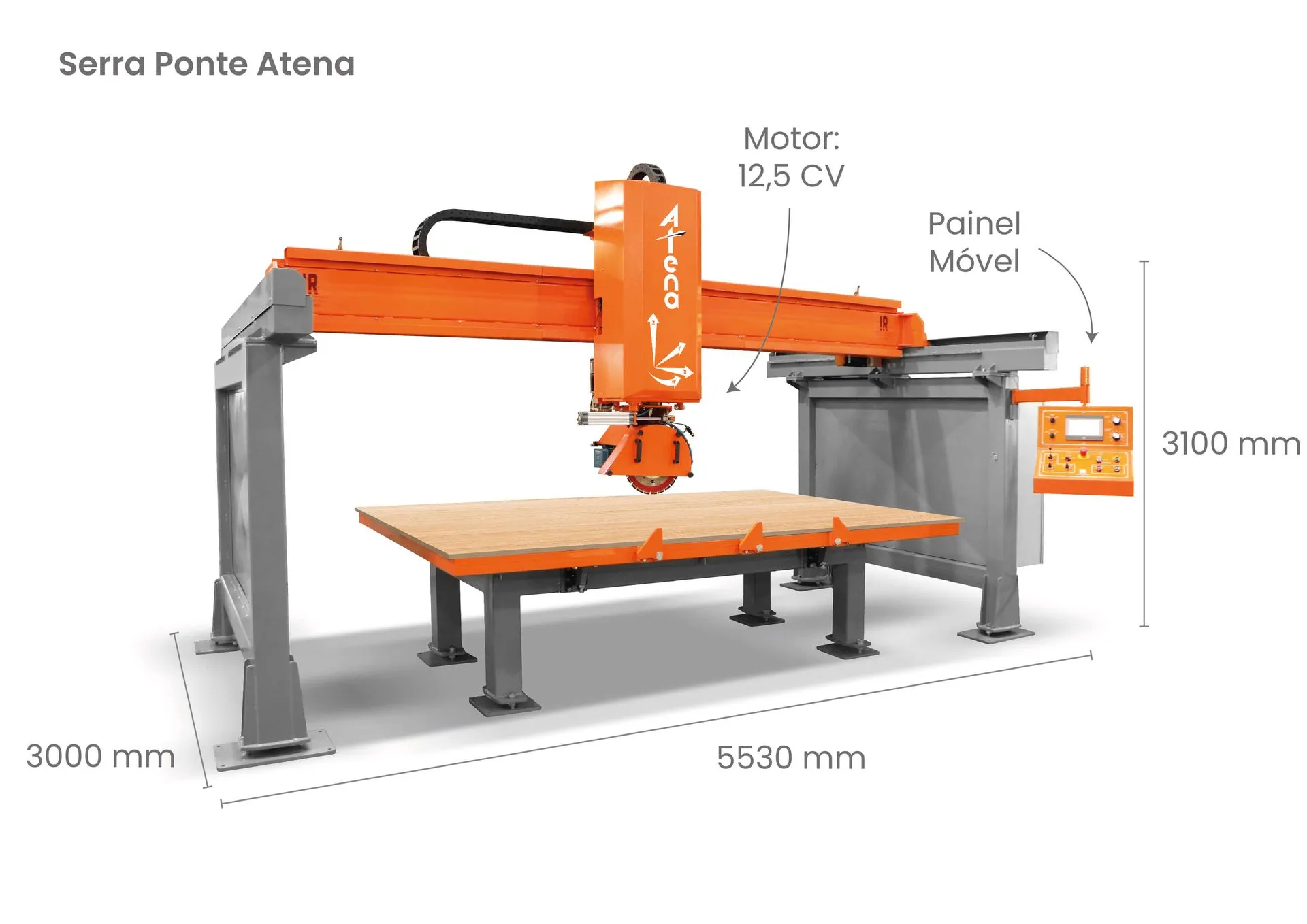

Linear movements in X, Y and Z axes, and rotary W (0-90°); Movement system with servo motor and reducer; Manual lubrication center for skates and linear guides; Remote control; PLC control system; Panel with screen 10 ” touch screen, with different recipes for multiple, transverse and longitudinal cuts; Adjustable cutting speed according to the material; Installed power of 17 CV 220/380 V; Tilting table with 85° lifting; Laser guide to assist with cutting.
